Hansen Fastflo Short Arm With Long Tail Valve 25mm

Adding to the Hansen HiFlo family of valves comes the much anticipated release of the Hansen Fast-Flo valve. Ideally suited to tight fitting environments that demand a more compact sized valve with responsive on/off capabilities, the Fast-Flo valve brings with it exceptional flow rates and adaptability. Built to the same quality and precision specifications as the Hansen range of valves that precede it. The barbed outlet allows for a hose attachment to both diffuse and help eliminate noise form the outlet flow. A tough, reversible urethane seat effectively doubles the life of the valve providing a ‘best of class’ valve that’s reliable for the long term.

Features

• For automatic filling & maintaining water levels in animal drinking troughs, water storage tanks & water cisterns etc.
• Small, compact design suited to confined spaces i.e. small feeder bowls, troughs & header tanks.
• High performance, cost effective trough/tank valve - 29 psi, 34 l/min.
• The Fast-Flo Short Arm valve has the highest flow of any valve of its size at 500kPa (73 psi) it will deliver 56 l/min.
• Ability to attach a diffuser hose to reduce water turbulence & noise in top entry installations & Anti-Syphon holes to prevent back flow.
• Designed with an Ezi Bend brass arm to make water level adjustment a breeze.
• Will fit multiple thread & connection combinations 15 - 50mm.
• Reliable with high and low pressure applications from 0 - 12 bar/ 0 to 174 PSI.
• Durable urethane seat, which is reversible.
• Suitable for top or side entry.
• Manufactured from strong, non-corrosive UV stabilised materials.

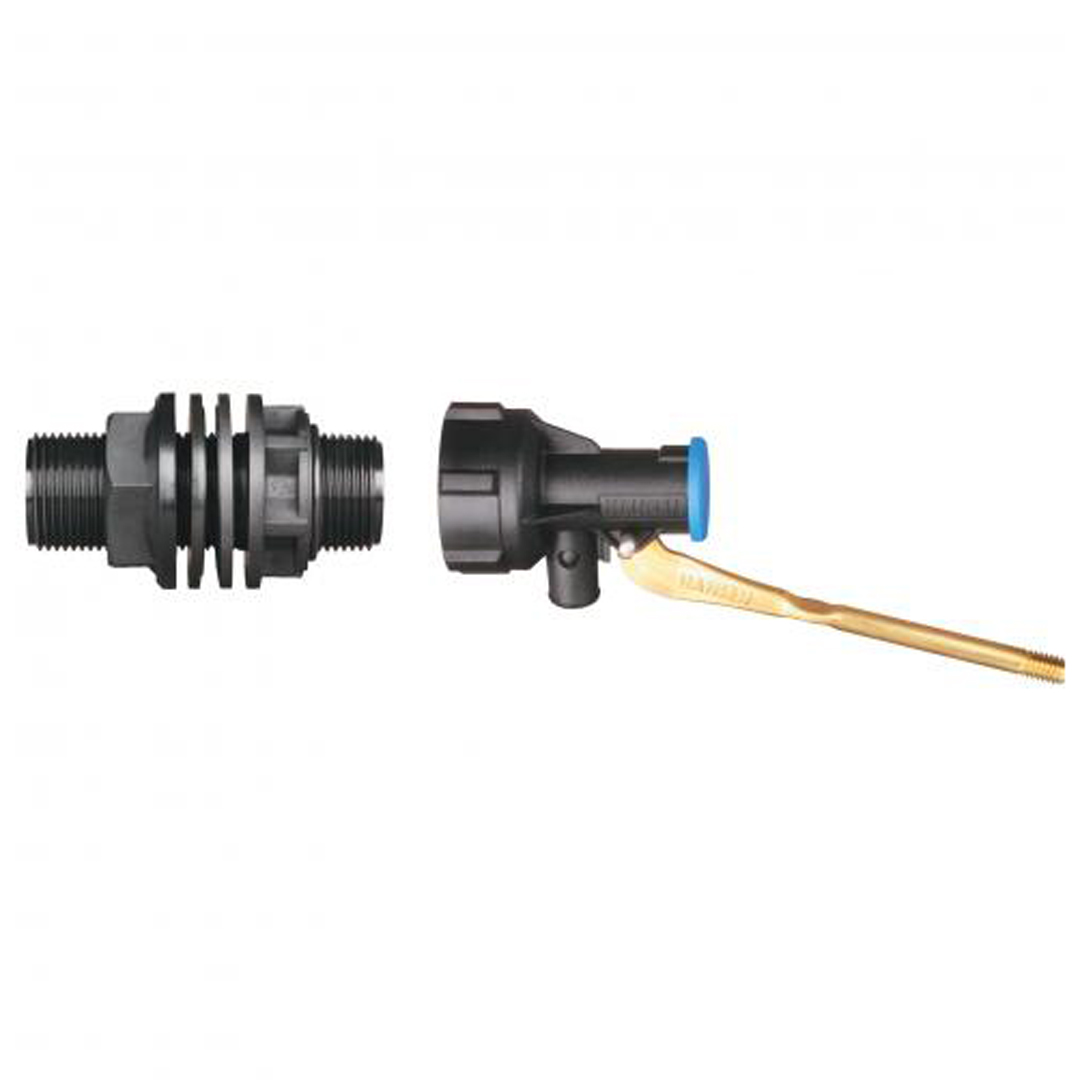

• Supplied with Complete Plastic Valve Body, Short Brass Arm, 25mm Long Tail Adaptor.
