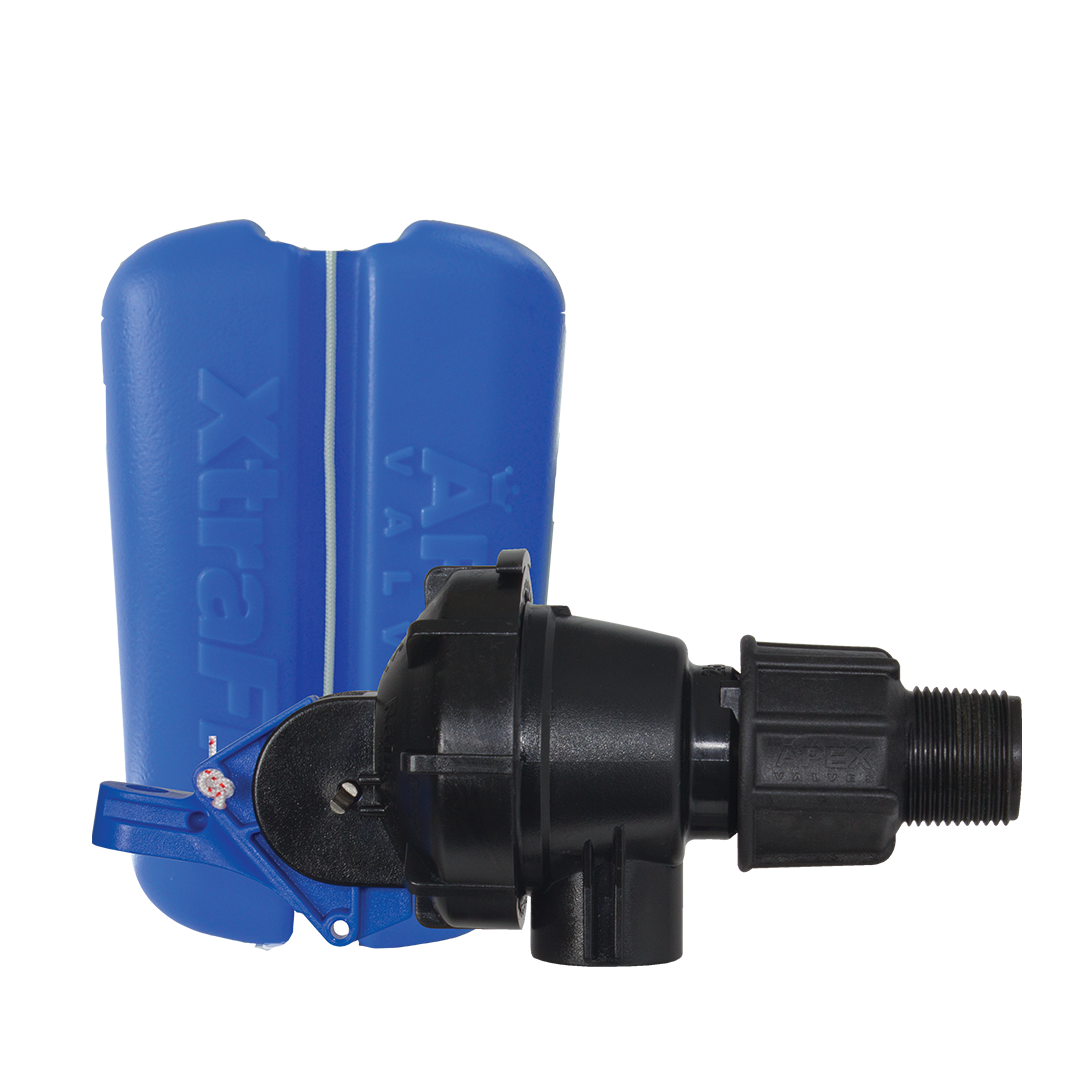

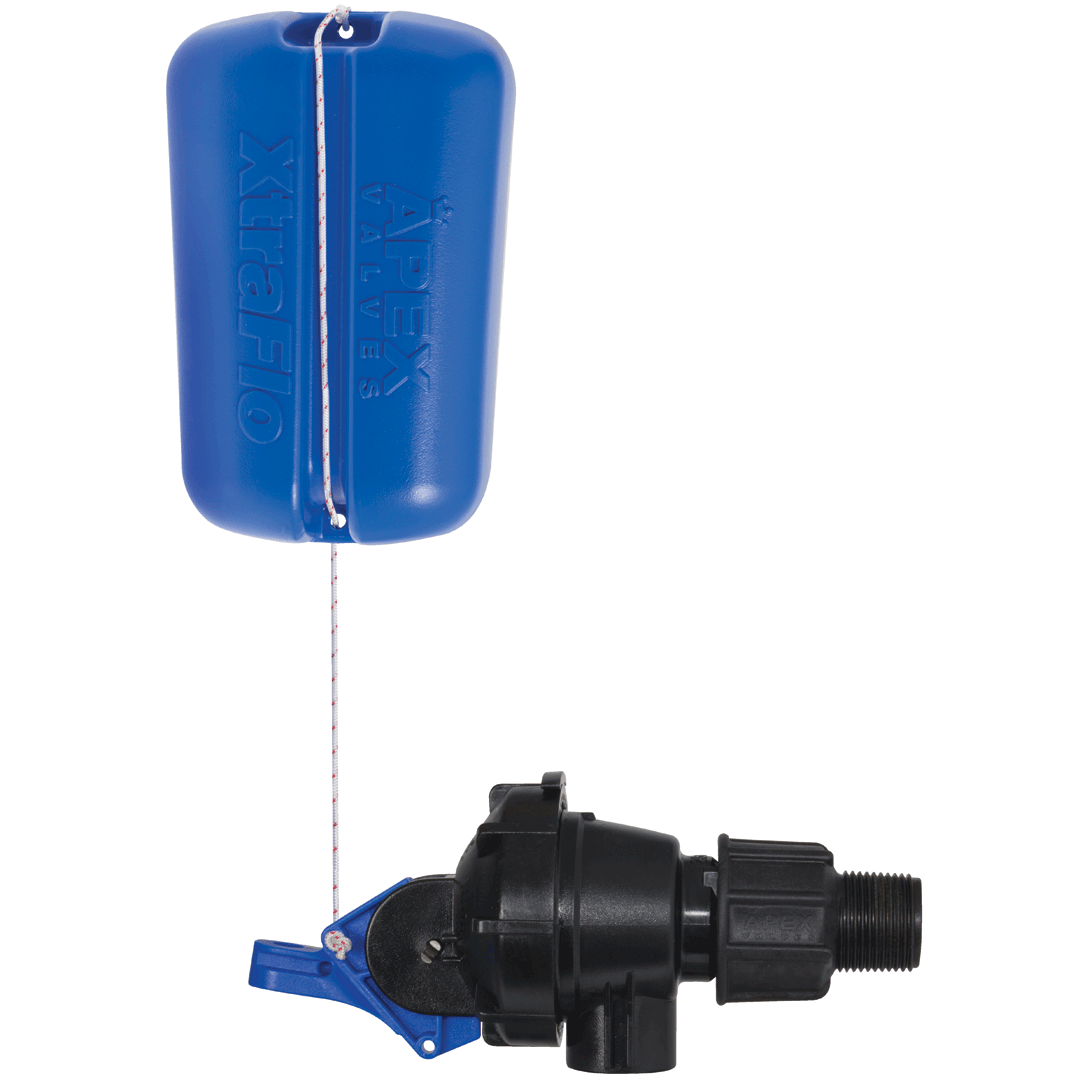

Apex Xtraflo Armless Trough Valve 25-20mm
Apex Xtraflo Armless Trough Valve 25-20mm
In stock
Description
Description
XtraFlo Full Flow Trough Valve is a high demand compact armless diaphragm valve with full-flow high volume fill. The valve has a 25mm water level differential between opening and closing, reducing pump motor overload. Full-flow operation, the pump runs unrestricted until trough is full.
- Full flow designed for fast filling large troughs with high demand.
- Unique cam-lock compatible outlet allows for convenient water supply for many jobs around the farm.
- Very high flow rate: 500 L/min. @ 1200 kPa (175 psi).
- Comes with a reducing bush so one valve fits two inlet sizes.
- Camlock compatible outlet for a convenient water source.
- Shut-off pin to close valve.
- Plunger serviced without removing arm.
- Fully serviceable - no tools required.
- Camlock compatibility.
- Top entry troughs or minimum clearance from trough bottom 150mm.
- Working pressure: Standard arm: 0 -1200 kPa (0 - 175 psi) Short arm: 0 - 800 kPa (0 - 115 psi).
- Flow rate: 500 L/min. (110 gal/min.) @ 1200 kPa (175 psi).
- Temperature range: 1°C - 60°C.
Product Details
Product Details
- Brand: Apex
- Net Weight: 0.38kg
- DG Goods Class: N/A
- Gross Width: 200mm
- Gross Depth: 200mm
- Gross Height: 250mm
- Unit Volume: 10000000mm³
- ACVM Registration Number: N/A
- Active Ingredients: N/A
